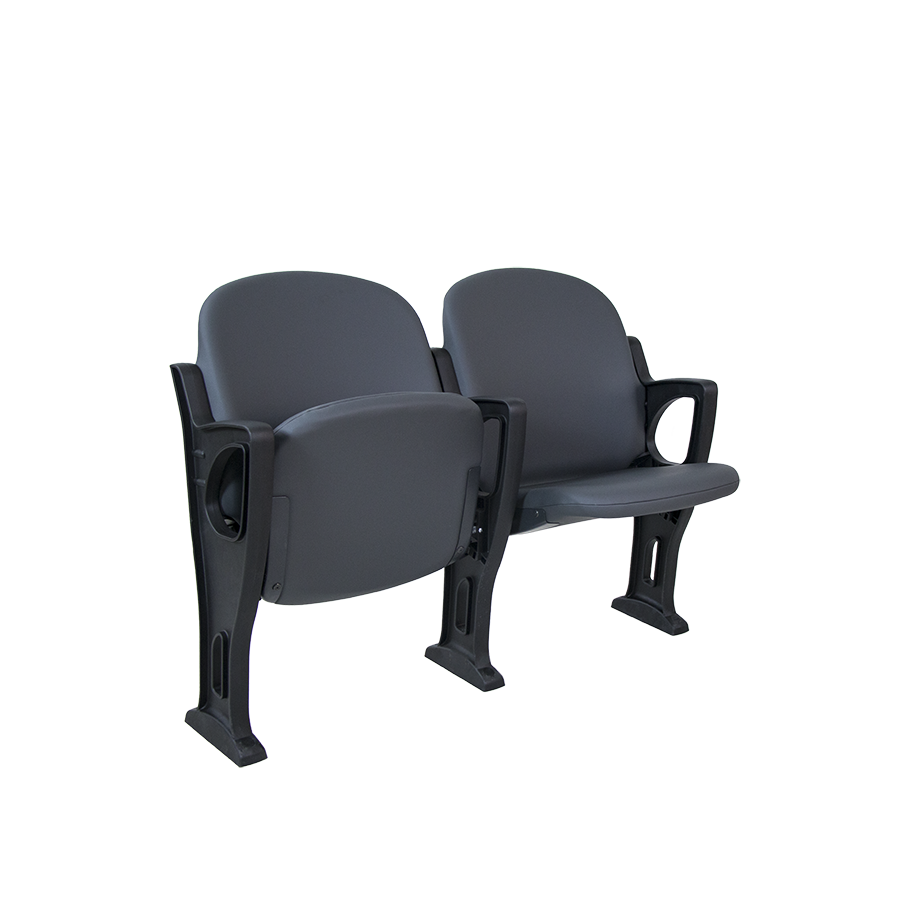

ES 500 SEATS
Versatile seats designed for comfort and durability under the most extreme conditions, for inside or outside use thanks to option of upholstered seat and backrest. Ideal for sports stadiums and complexes, VIP areas, auditoriums, multi-purpose halls, etc.
- Dimensions 48 – 56 cm seat centres
40 cm depth
86 cm height - Backrest Extrusion blow moulded in texturized high-density polyethylene.
Structure fixed over an open cell polyurethane foam block fully upholstered by means of a fabric cover.
It fits into the lateral parts of the side panel.
Foam density, 40 Kg/m³ - Seat Extrusion blow moulded in texturized high-density polyethylene.
Structure fixed over an open cell polyurethane foam block fully upholstered by means of a fabric cover.
The seat pan folds by means of an automatic noiseless maintenance-free spring.
Foam density, 40 Kg/m³ - Side panel Texturized injected polypropylene, reinforced with glass fibre.
Concelaed floor fixation system. - Armrest Included in the very side panel.
- Volume 0.08 m³ / unit
- Weight 10.40 Kg not assembled
Request information

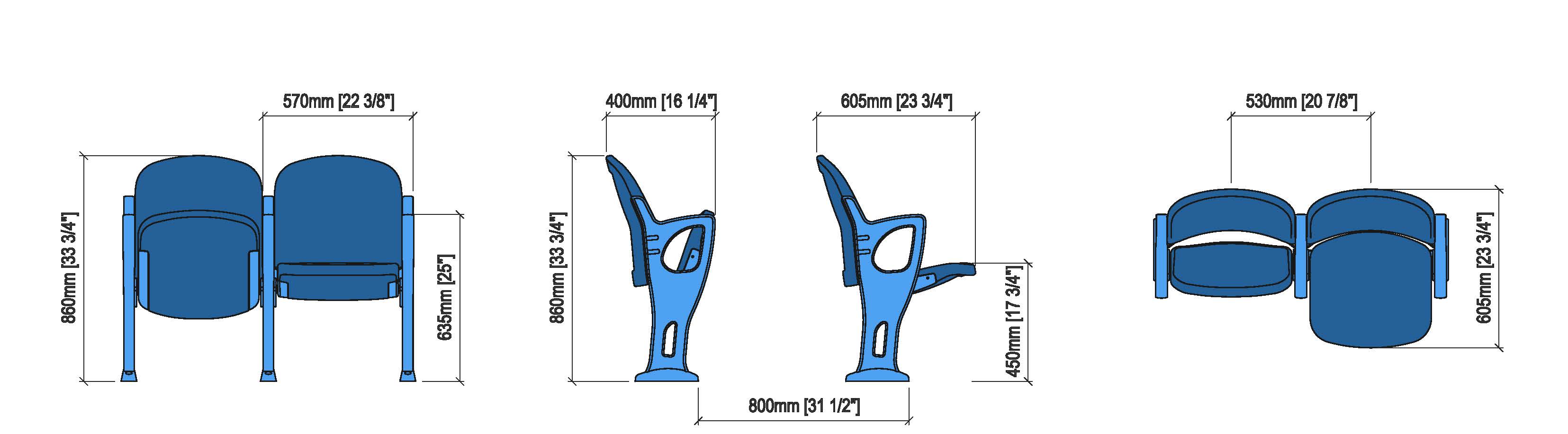

DIMENSIONS AND DRAWING
CERTIFICATES
| Fabric | Barrier | Foam | Plastic | Complete seat | |
|---|---|---|---|---|---|
| BS 5852:1979 Parte 1 | BS 5852:2006 | BS-EN 1021-1:2006 | CAL TB 117-2013, SECTION 1 | COEFICIENTE DE ABSORCIÓN ACÚSTICA | EN 1021-1 and EN 1021-2: Fire Classification | UNE 23.727-90 1R (M1) | UNE 23.727-90 1R (M2 / M3) OPCIONAL | X | UNE EN 12727:01 Uso Público Severo (Nivel 4) | X | UNE-EN 1021-1:2006 y UNE-EN 1021-2:2006 |
